Beverage Bottling Equipment

We are a professional enterprise engaged in the development, manufacture and production of Beverage Bottling Equipment. The beverage machinery can complete the whole process of bottle washing, filling, sealing, etc., reducing the contact time of materials and external impurities, and improving sanitary conditions, production capacity and economic benefits.

Chat Now

Product Details

Product Description

We are a professional enterprise engaged in the development, manufacture and production of Beverage Bottling Equipment. The beverage machinery can complete the whole process of bottle washing, filling, sealing, etc., reducing the contact time of materials and external impurities, and improving sanitary conditions, production capacity and economic benefits. Instead of the traditional star wheel, a hanging neck holder is used to facilitate the change of the bottle body size. There is no need to adjust the height of the equipment, just replace the small nylon parts such as the arch plate and the star wheel.

Advantages

The series of Beverage Bottling Equipment is durable, efficient and safe, and is the ideal machine for beverage enterprises. The specially designed stainless steel rinse holder is sturdy and durable, and has no contact with the screw part of the bottle body to prevent secondary pollution. If you have any questions or good ideas about Beverage Bottling Equipment, please don't hesitate to contact us, we value and need every customer's proposals.

Water treatment system:

The Reverse Osmosis process uses a semi-permeable membrane to separate and remove dissolved solids, organics, pyrogens, submicron collodial matter, viruses, and bacteria from water. The process is called "Reverse" Osmosis since it requires pressure to force pure water across a membrane, leaving the impurities behind. Reverse Osmosis is capable of removing 95 - 99% of the total dissolved solids (TDS) and 99% of all bacteria, thus providing safe, pure water

Bottle blowing machine:

Here we can supply both semi auto and full auto bottle blowing machine according to your needs.

Full auto machine we do 2 cavities, 4 cavities, 6 cavities and 8 cavities.

Juice blending system:

Mixing system: Syrup melting tank→Juice preparing tank with thermal & blender→Double heads filter→

Juice de-oxygenation machine→Juice homogenizer→High level juice tank→UHT Sterilizer→Heat insulation storage tank→Syrup & beverage pump→Semi-auto CIP system→Pipes and valves→Control cabinet

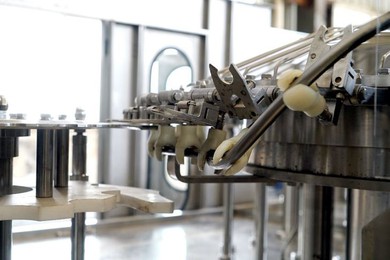

Juice Rinsing Machine:

Rotative rinsing turret one treatment, fixed nozzles, with grippers.

The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.

After the gripping, the bottle is turned upside down and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining perJuice Filling machine:

The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
Product bowl is to reduce the loss of heat.

If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with pump.

Juice Capping machine:

Rotative capping turret, suitable to the application of screw plastic caps on PET bottles

The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.

The heads are raised and lowered by the action of a follower that is riding on a shaped cam. iod the bottle is turned over to an upright position again.
