Water Treatment Plant Machine

Reverse osmosis device is the raw water after fine filter, granular activated carbon filters, compressed activated carbon filter, etc., and then through the pump pressure, use the aperture for 1/10000 microns (1/6000 of 1/6000 of the size of e. coli, virus) reverse osmosis membrane (RO) membrane

Chat Now

Product Details

Product Application

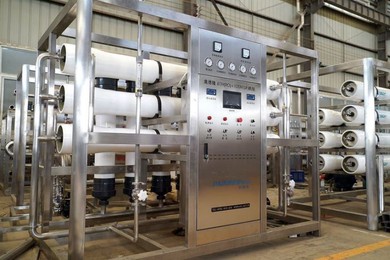

Reverse Osmosis System RO Plant CE Compliant 50000 Gallons water per day requirement

Reverse osmosis device is the raw water after fine filter, granular activated carbon filters, compressed activated carbon filter, etc., and then through the pump pressure, use the aperture for 1/10000 microns (1/6000 of 1/6000 of the size of e. coli, virus) reverse osmosis membrane (RO) membrane, the relatively high concentrations of water into a low concentration of water, at the same time, the industrial pollutants, heavy metals, bacteria, viruses, such as a large number of mixed with the impurities in the water all isolation, so as to achieve the physical and chemical indicators and health standards set by the drinking, output to the qing dynasty to pure water, is the best choice for high quality timely replen

Model No. RO- 2000L/H

Product Description

The reverse osmosis device is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane. RO is also effective with asbestos, many taste, colour and odour producing chemicas, particulates, total dissolved solids, turbidity and radium. RO system is widely used in water supply treatment, purification for tap water, seawater and brackish water, pure water and ultra-pure drinking water production, power stations, electronic industries, medicine manufactories, and medical treatment. It is key equipment of pure water plant.

Main equipment included that pre-treatment ,RO system,Washing system etc.

(A) Pre-treatment is included sand filter ,carbon filter ,softener(option) and security filter.

1. Sand filter: A laminated filter is provided to prevent sand, flocculent and colloid entering into membrane element. Its basic filter element is formed by quartzes sand and anthracite.

2. Active carbon filter: This is provided to absorb organic materials, residual chlorine and other injurants, thus it can reduce the effluent COD and keep SDI under and CL2 under 0.1 mg. L.

3. Softening system: This system is to prevent begrime the membrane by ion of Ca and Mg.

4. Precision filter (micro filter) ,PP filter of 5um is installed to prevent fine particulate entering the high lift pump and RO membrane.

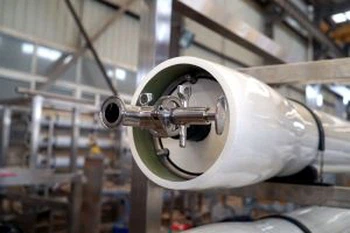

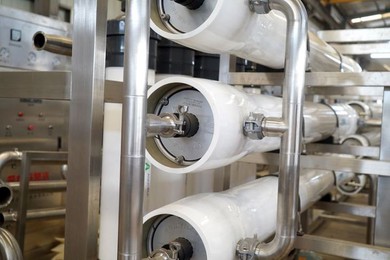

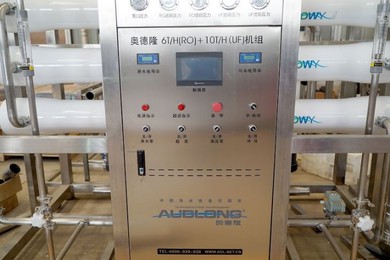

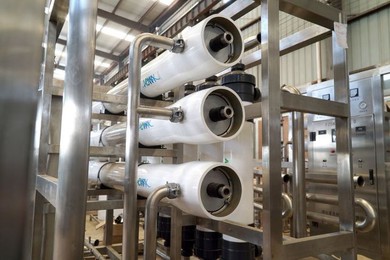

(B) RO system is included that booster pump,membrane and membrane housing, electronic Control System.

It cut out colloids, bacteria, virus and other impurities, and keep output water conductivity below 5um/cm.

(C) Pure water tank: When the pure water tank is full, the RO machine will automatically come to stop, when the pure water tank is empty, the RO system will automatically run to produce the pure water.

Process: Raw water ->Raw water tank -> Raw water pump -> Quartz sand filter -> Active carbon filter-> High pressure pump ->Security filter -> RO equipment->Pure water tank

Working Principle

The air will be send by air compressor into air tank, then take in air dissolved tank by jet flow device, the air will be force to dissolve into water under 0.35Mpa pressure and forming dissolved air water, then send to air flotation tank. Under the circumstance of sudden release, the air dissolved in water will be dissolve out and form vast micro bubble group, which will be fully contact the flocculating suspended matter in sewage, the suspended matter was sent by pump and flocculation after adding medicine, the ascending micro bubble group will adsorb in the flocculated suspended matter, made its density reduce and floated to water surface, thus reach the purpose of removing SS and Cod etc.
