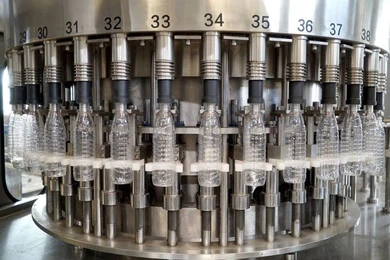

24 Bpm Bottle Filling Machine
Product Details
Product Description
Our company is devoted to provide 24 Bpm Bottle Filling Machine to friends both old and new both at home and abroad with superior quality and competitive price. It is suitable for filling water and is used in conjunction with famous electrical components, with stable performance. The machine has high degree of automation, high production efficiency, high safety, good stability, and high reliability. The products produced are not polluted by any intermediate procedures, and can be directly used with the filling production line. The quality of the 24 Bpm Bottle Filling Machine reaches the international advanced level.
Advantages
The 24 Bpm Bottle Filling Machine can complete the whole process of pressing, filling, and sealing the bottle, reducing the time of contact between materials and the outside world, and improving sanitary conditions, production capacity and economic benefits. It is mainly used to produce polyester bottled mineral water, purified water, alcoholic beverages and other non-gas beverages. We can give you the most competitive prices and high quality, because we are much professional! So please do not hesitate to contact us!

CGF Wash-filling-capping 3-in-1unit
technical parameters:
Technical Data | ||||
Model | XF12/12/5 | CGF16/16/5 | CGF24/24/8 | CGF32/32/10 |
The number of Washing, Filling, Capping | 12-12-5 | 16-16-5 | 24-24-8 | 32-32-8 |
Producing capacity: The number of bottle (600ml)/hour | 5000 | 8000 | 8000-12000 | 12000-15000 |
Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | |||
Pressure (kg/cm2) | 2~3 | |||
Motor power (kw) | Main motor 1.5kw | Main motor 2.2kw | Main motor 3kw | Main motor 4kw |
Outside vacuum pump power (kw) | 0.75 | 1.1 | 1.5 | 2.2 |
Overall dimension (mm) (LxWxH) | 2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 |
Weight(kg) | 2500 | 3500 | 4200 | 5500 |
Technical Data | |||
Model | CGF40/40/10 | CGF48/48/12 | CGF60/60/15 |
The number of Washing, Filling, Capping | 40-40-10 | 48-48-12 | 60-60-15 |
Producing capacity: The number of bottle (600ml)/hour | 16000-20000 | 20000-24000 | 25000-30000 |
Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | ||
Pressure (kg/cm2) | 2~3 | ||
Motor power (kw) | Main motor 7.5kw | Main motor 9.5kw | Main motor 12kw |
Outside vacuum pump power (kw) | 2.2 | 3 | 4 |
Overall dimension (mm) (LxWxH) | 4600x1800x2650 | 5200x4500x3400 | 6500x4500x3400 |
Weight(kg) | 6800 | 7600 | 9800 |
