Water Filling Equipment

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing.

Chat Now

Product Details

Product Description

This series of bottled water filling line is designed for 3 gallon,5 gallon barrels of drinking water.The model will be cleaned by filling and sealing.This is a good choice for the production of mineral water,prue water equipment.The machine adopts high quality stainless steel,corrosion resistance,easy to clean.The main electrical components are SIEMENS,OMRON,and related parts.The machine has a good structure,small footprint,stable performance,high production efficiency,high degree of automation,is a collection of machine,electricity,gas in one of the new drinking water tank equipment.

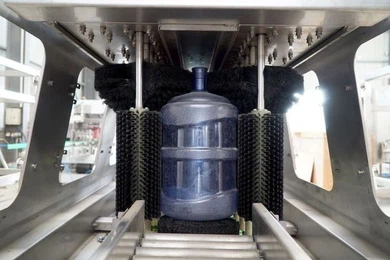

Outside Wshing Machine.

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.

Main Machine Features.

1. Shape structure adopted concave and convex shape, perfect appearance also reduces the leakage.

2. The thickness of the stainless steel plate which used for 600bph is 3mm.

3. Tank and the heating pipe in tank are removable which become more clean sanitation.

Filling Part Features.

1. Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.

Capping Parts.

1. Liquid level difference is controlled in 1cm.

2. Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.

3. Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.

Flat Conveyor.

The chain board on conveyor is made with stainless steel. The appearance of foot stand is perfect, and the height can be adjusted.

Cap Sterilization System.

Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
